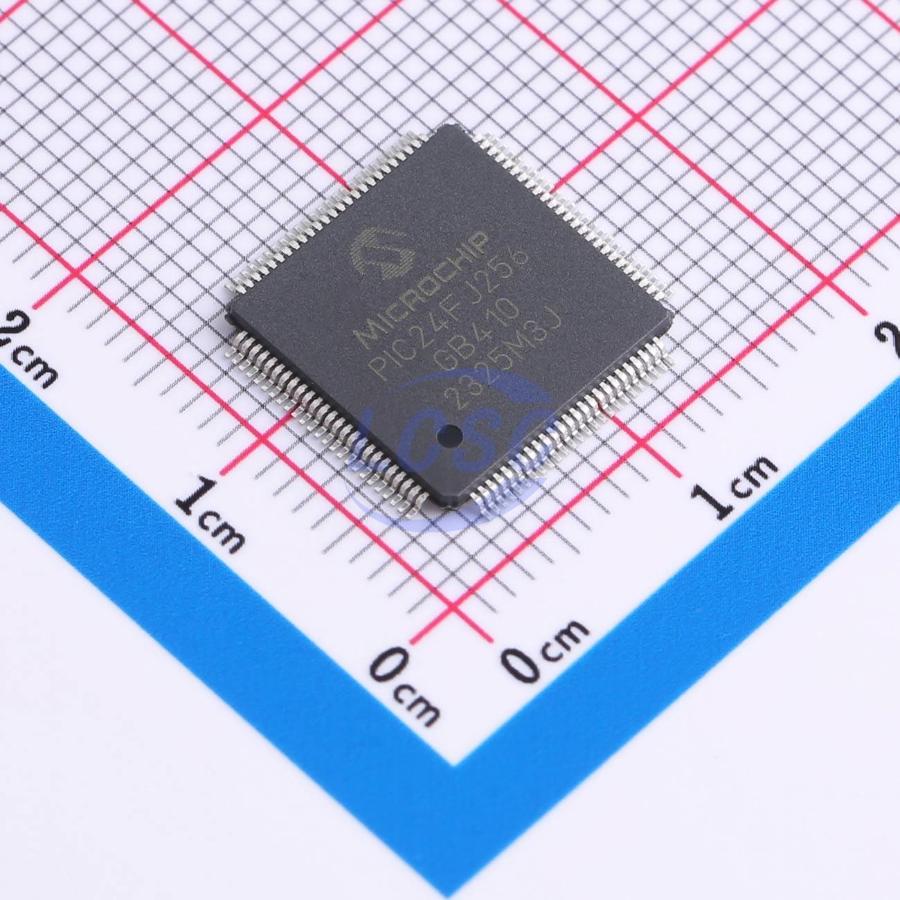

PIC24FJ256GB410-I/PT

Key features

• Multiple Power Management Options for Extreme Power Reduction:
• VBAT allows for lowest power consumption on backup battery (with or without RTCC)
• Deep Sleep allows near total power-down with the ability to wake-up on external triggers
• Sleep and Idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up
• Doze mode allows CPU to run at a lower clock speed than peripherals
• Alternate Clock modes allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
• Extreme Low-Power Current Consumption for Deep Sleep:
• WDT: 650 nA @ 2V typical
• RTCC: 650 nA @ 32 kHz, 2V typical
• Deep Sleep current, 60 nA typical
• 160 μA/MHz in Run mode
• Modified Harvard Architecture
• Up to 16 MIPS Operation @ 32 MHz
• 8 MHz Internal Oscillator:
• 96 MHz PLL option
• Multiple clock divide options
• Run-time self-calibration capability for maintaining better than ±0.20% accuracy
• Fast start-up
• 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture
• Two Address Generation Units for Separate Read and Write Addressing of Data Memory
• Performs NIST Standard Encryption/Decryption Operations without CPU Intervention
• AES Cipher Support for 128, 192 and 256-Bit Keys
• DES/3DES Cipher Support, with up to Three Unique Keys for 3DES
• Supports ECB, CBC, OFB, CTR and CFB128 modes
• Programmatically Secure OTP Array for Key Storage
• True Random Number Generation
• Battery-Backed RAM Key Storage
• 10/12-Bit, up to 24-Channel Analog-to-Digital (A/D) Converter:
• Conversion rate of 500 ksps (10-bit), 200 kbps (12-bit)
• Auto-scan and threshold compare features
• Conversion available during Sleep
• One 10-Bit Digital-to-Analog Converter (DAC):
• 1 Msps update rate
• Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
• Charge Time Measurement Unit (CTMU):
• Used for capacitive touch sensing, up to 24 channels
• Time measurement down to 100 ps resolution
• Capable of Holding Two Independent Software Applications, including Bootloader
• Permits Simultaneous Programming of One Partition while Executing Application Code from the Other
• Allows Run-Time Switching Between Active Partitions
• USB v2.0 On-The-Go (OTG) Compliant
• Dual Role Capable – Can Act as Either Host or Peripheral
• Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s) USB Operation in Host mode
• Full-Speed USB Operation in Device mode
• High-Precision PLL for USB
• USB Device mode Operation from FRC Oscillator – No Crystal Oscillator Required
• Supports up to 32 Endpoints (16 bidirectional):
• USB module can use any RAM locations on the device as USB endpoint buffers
• On-Chip USB Transceiver with Interface for Off-Chip USB Transceiver
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• On-Chip Pull-up and Pull-Down Resistors
• 20,000 Erase/Write Cycle Endurance, Typical
• Data Retention: 20 Years Minimum
• Self-Programmable under Software Control
• Supply Voltage Range of 2.0V to 3.6V
• Two On-Chip Voltage Regulators (1.8V and 1.2V) for Regular and Extreme Low-Power Operation
• Programmable Reference Clock Output
• In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE) via 2 Pins
• JTAG Boundary Scan Support
• Fail-Safe Clock Monitor (FSCM) Operation:
• Detects clock failure and switches to on-chip, Low-Power RC (LPRC) Oscillator
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Separate Brown-out Reset (BOR) and Deep Sleep Brown-out Reset (DSBOR) Circuits
• Programmable High/Low-Voltage Detect (HLVD)
• Flexible Watchdog Timer (WDT) with its Own RC Oscillator for Reliable Operation
• Standard and Ultra Low-Power Watchdog Timers (ULPW) for Reliable Operation in Standard and Deep Sleep modes
• Temperature Range: -40°C to +85°C
• LCD Display Controller:
• Up to 64 Segments by 8 Commons
• Internal charge pump and low-power, internal resistor biasing
• Operation in Sleep mode
• Up to Five External Interrupt Sources
• Peripheral Pin Select (PPS); allows Independent I/O Mapping of Many Peripherals
• Six-Channel DMA Supports All Peripheral modules:
• Minimizes CPU overhead and increases data throughput
• Five 16-Bit Timers/Counters with Prescalers:
• Can be paired as 32-bit timers/counters
• Using a combination of Timer, CCP, IC and OC Timers, the Device can be Configured to use up to 31 16-Bit Timers, and up to 15 32-Bit Timers
• Six Input Capture modules, each with a Dedicated 16-Bit Timer
• Six Output Compare/PWM modules, each with a Dedicated 16-Bit Timer
• Six Single Output CCPs (SCCP) and One Multiple Output CCP (MCCP) modules:
• Independent 16/32-bit time base for each module
• Internal time base and Period registers
• Legacy PIC24F Capture and Compare modes (16 and 32-bit)
• Special variable frequency pulse and Brushless DC Motor (BDCM) Output modes
• Enhanced Parallel Master/Slave Port (EPMP/EPSP)
• Hardware Real-Time Clock/Calendar (RTCC) with Timestamping:
• Tamper detection with timestamping feature and tamper pin
• Runs in Deep Sleep and VBAT modes
• Four Three-Wire/Four-Wire SPI modules (support four Frame modes) with 8-Level FIFO Buffer
• Three I²C modules support Multi-Master/Slave mode and 7-Bit/10-Bit Addressing
• Six UART modules:
• Support RS-485, RS-232 and LIN/J2602
• On-chip hardware encoder/decoder for IrDA
• Auto-wake-up on Auto-Baud Detect (A)
