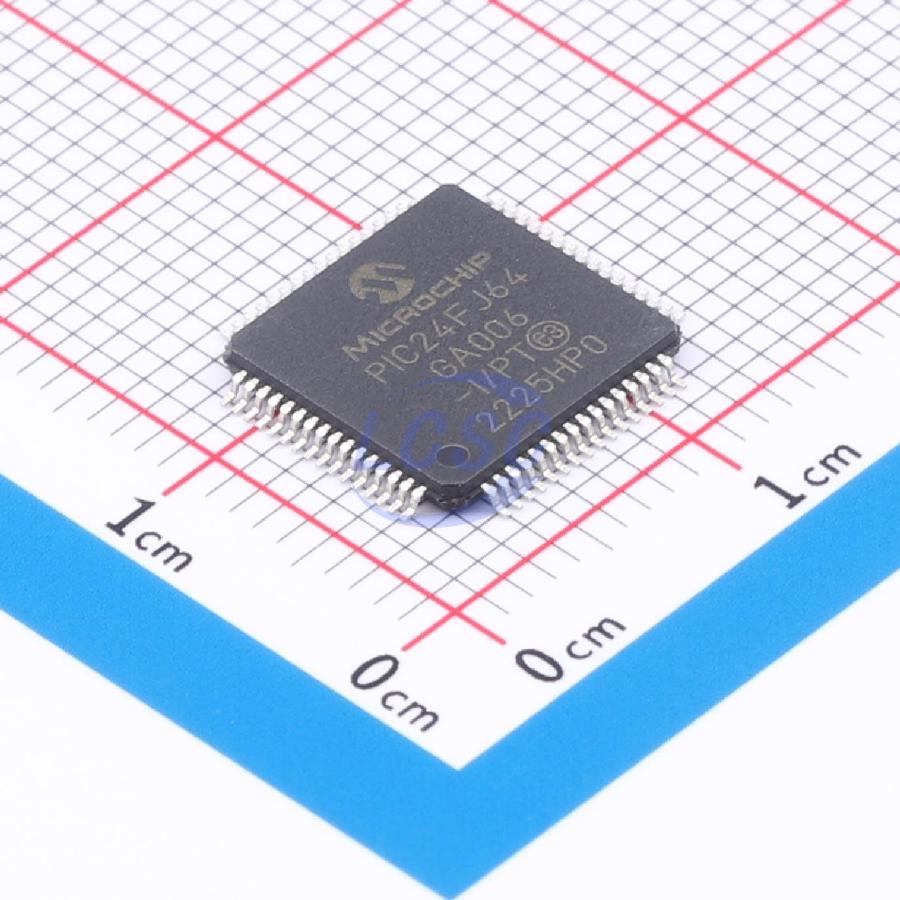

PIC24FJ64GA006T-I/PT

Key features

• Modified Harvard Architecture
• Up to 16 MIPS Operation @32 MHz
• 8 MHz Internal Oscillator with 4x PLL Option and Multiple Divide Options
• 17-Bit x 17-Bit Single-Cycle Hardware Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16x16 -Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture: 76 base instructions, Flexible addressing modes
• Two Address Generation Units for Separate Read and Write Addressing of Data Memory
• Operating Voltage Range of 2.0V to 3.6V
• Flash Program Memory: 1000 erase/write cycles, 20-year data retention minimum
• Self-Reprogrammable under Software Control
• Selectable Power Management modes: Sleep, Idle and Alternate Clock modes
• Fail-Safe Clock Monitor Operation: Detects clock failure and switches to on-chip, low-power RC oscillator
• On-Chip 2.5V Regulator
• JTAG Boundary Scan and Programming Support
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Flexible Watchdog Timer (WDT) with On-Chip, Low-Power RC Oscillator for Reliable Operation
• In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE) via 2 Pins
• 10-Bit, Up to 16-Channel Analog-to-Digital Converter: 500 ksps conversion rate, Conversion available during Sleep and Idle
• Dual Analog Comparators with Programmable Input/Output Configuration
• Two 3-Wire/4-Wire SPI modules, Supporting 4 Frame modes with 8-Level FIFO Buffer
• Two I²C modules Support Multi-Master/Slave mode and 7-Bit/10-Bit Addressing
• Two UART modules: Supports RS-232, RS-485 and LIN/J2602, On-chip hardware encoder/decoder for IrDA, Auto-wake-up on Start bit, Auto-Baud Detect, 4-level FIFO buffer
• Parallel Master Slave Port (PMP/PSP): Supports 8-bit or 16-bit data, Supports 16 address lines
• Hardware Real-Time Clock/Calendar (RTCC): Provides clock, calendar and alarm functions
• Programmable Cyclic Redundancy Check (CRC): User-programmable polynomial, 8/16-level FIFO buffer
• Five 16-Bit Timers/Counters with Programmable Prescaler
• Five 16-Bit Capture Inputs
• Five 16-Bit Compare/PWM Outputs
• High-Current Sink/Source (18 mA/18 mA) on All I/O Pins
• Configurable, Open-Drain Output on Digital I/O Pins
• Up to 5 External Interrupt Sources
• 5.5V Tolerant Input (digital pins only)
