DIODESDatasheet (PDF)

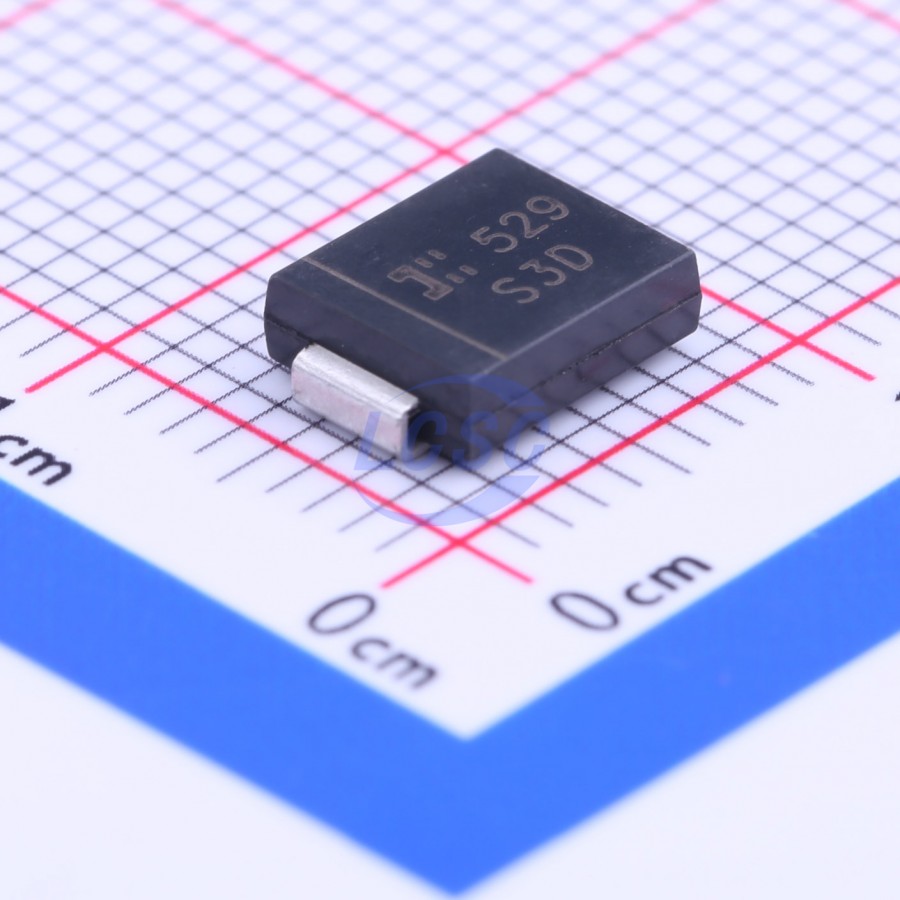

S3D-13-F
200V 1 Independent 1.15V@3A 3A SMC(DO-214AB) Single Diodes RoHS
SMC(DO-214AB)ROHS3 CompliantActive
Voltage: 200V Current: 3A
- Manufacturer
- DIODES
- Manufacturer part #
- S3D-13-F
- Store part #
- C156341
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C156341
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.67 | ₹103.35 |
| 50+ | ₹20.23 | ₹1,011.50 |
| 150+ | ₹19.92 | ₹2,988.00 |
| 500+ | ₹19.63 | ₹9,815.00 |
5 × ₹20.67
₹103.35
excl. GST
₹121.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S3D-13-F
₹103.35 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@3A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 100A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S5D-E3/9AT#C17563407VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 206 | ₹135.82 · 206 in stock | View |
 | S3GHE3_A/I#C2981055VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 1,276 | ₹35.89 · 1,276 in stock | View |
 | S3G-E3/9AT#C3014149VISHAY · DO-214AB | VISHAY | DO-214AB | 105 | ₹28.63 · 105 in stock | View |
 | S3MSMC#C511863BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 760 | ₹9.27 · 760 in stock | View |
 | S5G-E3/57T#C142622VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 440 | ₹24.93 · 440 in stock | View |
