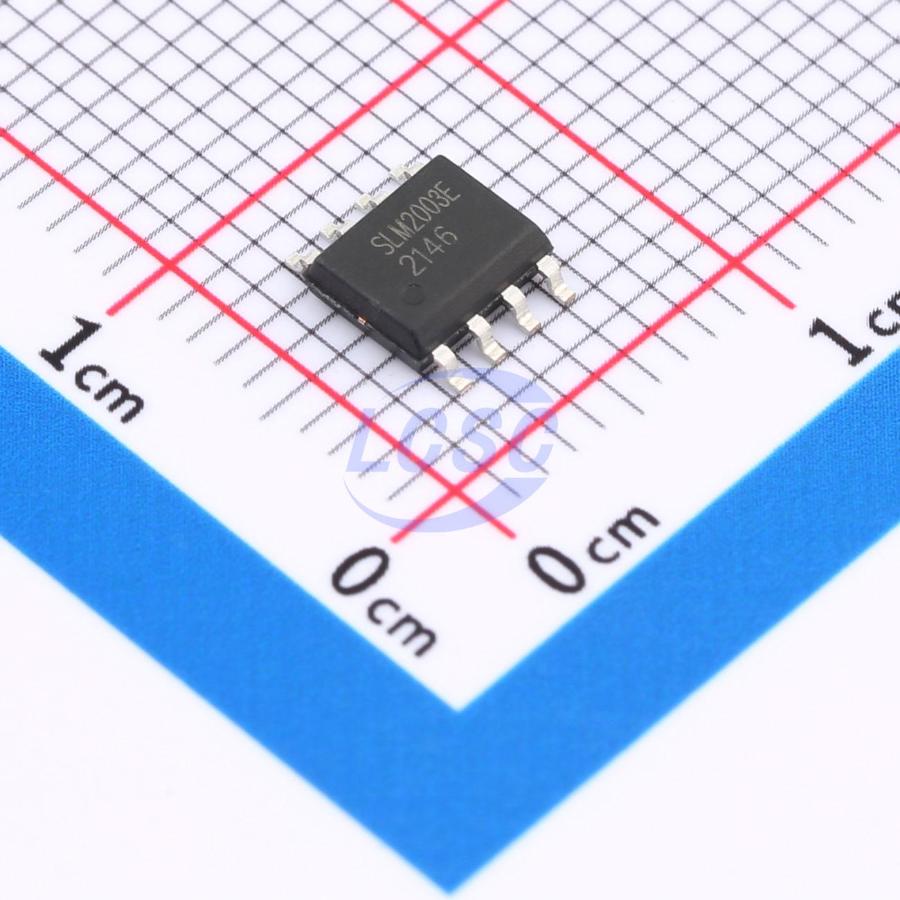

SLM2003ECA-DG
10V~18V 290mA 600mA SOIC-8 Gate Drivers
200V Half-Bridge Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SLM2003ECA-DG
- Store part #
- C2943125
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,395 in stock
#C2943125
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.07 | ₹110.35 |
| 50+ | ₹17.15 | ₹857.50 |
| 150+ | ₹15.04 | ₹2,256.00 |
| 500+ | ₹12.41 | ₹6,205.00 |
| 2,500+ | ₹11.77 | ₹29,425.00 |
| 5,000+ | ₹11.07 | ₹55,350.00 |
5 × ₹22.07
₹110.35
excl. GST
₹130.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM2003ECA-DG
₹110.35 for 5 + GST
Specifications
- Low Level Delay Time
- 125ns
- High Level Delay Time
- 125ns
- Voltage - Supply
- 10V~18V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 290mA
- Rise Time
- 70ns
- Fall Time
- 25ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The SLM2003E is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 200 V.
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +200 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 18 V
- Under-voltage lockout
- 3.3 V, 5 V logic compatible
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internal set deadtime
- High-side output in phase with HIN input
- Low-side output out of phase with LIN input
- RoHS compliant SOP8 package
