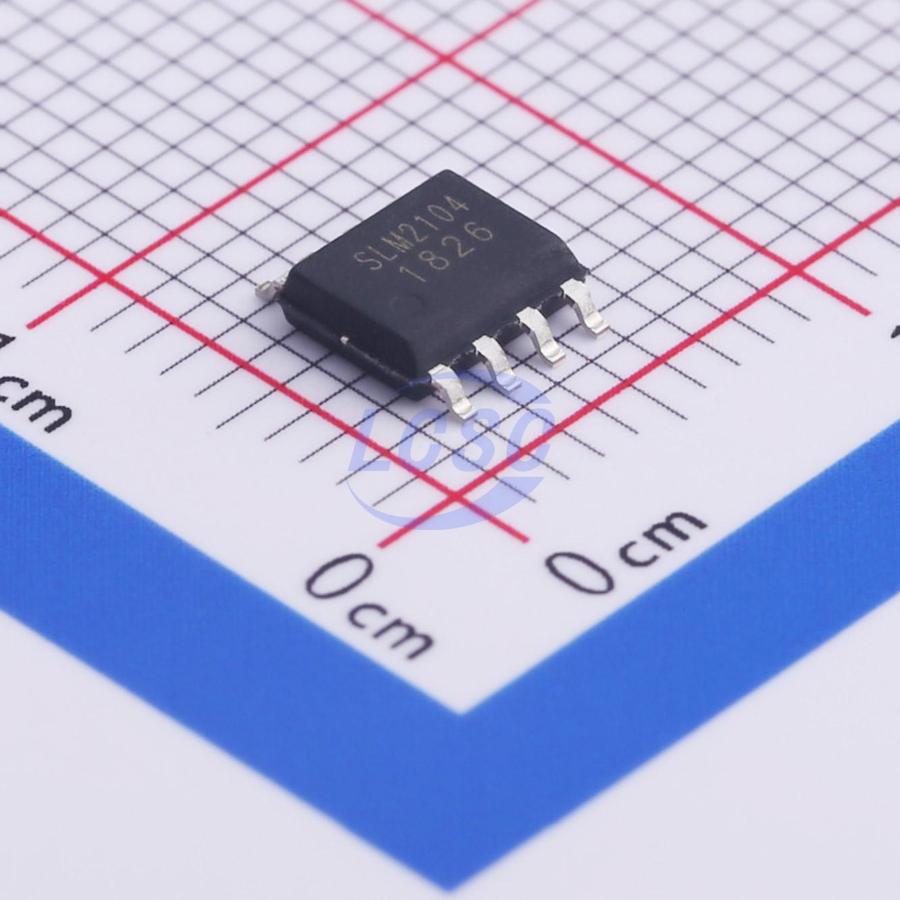

SLM2104SCA-13GTR
10V~20V 290mA 600mA SOP-8 Gate Drivers
600V Half-Bridge Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SLM2104SCA-13GTR
- Store part #
- C461470
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,675 in stock
#C461470
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.65 | ₹233.25 |
| 50+ | ₹36.16 | ₹1,808.00 |
| 150+ | ₹31.66 | ₹4,749.00 |
| 500+ | ₹26.06 | ₹13,030.00 |
| 2,500+ | ₹23.56 | ₹58,900.00 |
| 5,000+ | ₹22.07 | ₹1,10,350.00 |
5 × ₹46.65
₹233.25
excl. GST
₹275.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM2104SCA-13GTR
₹233.25 for 5 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 180ns
- Quiescent Current
- 220uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 290mA
- Rise Time
- 70ns
- Fall Time
- 25ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.215 g
Overview
The SLM2104S is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout
- 3.3 V, 5 V, and 15 V logic compatible
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internal set deadtime
- Shutdown input turns off both channels
- RoHS compliant SOP8 package
