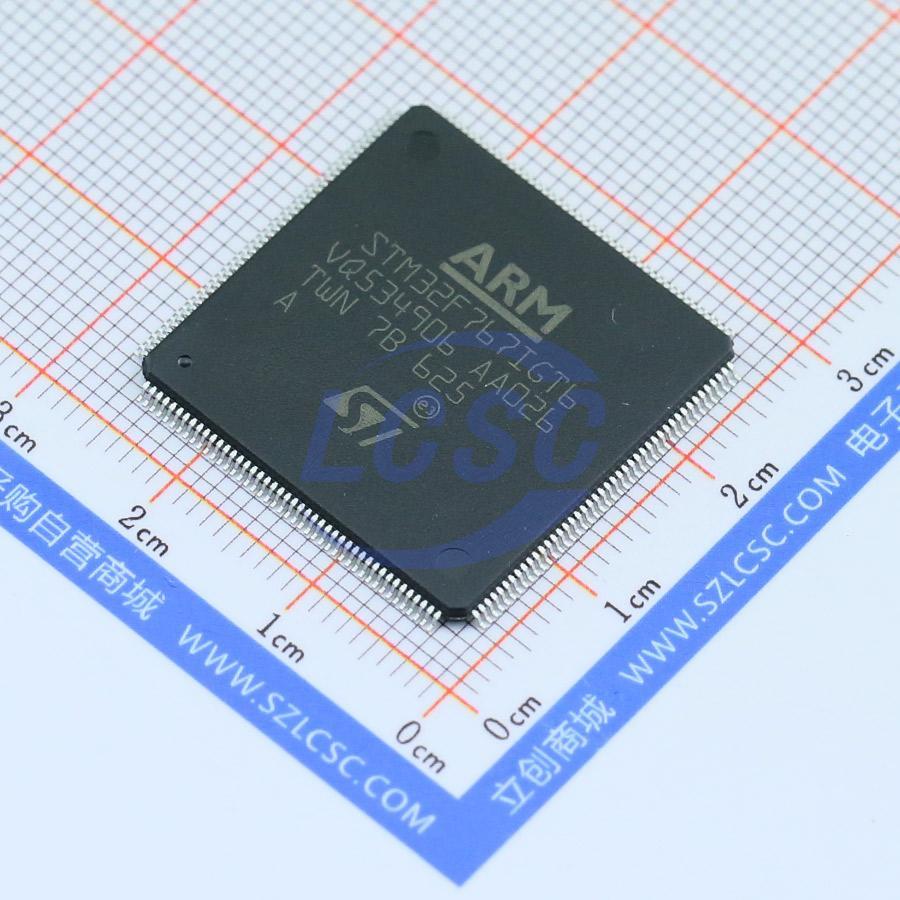

STM32F767IGT6

32-bit MCU+FPU based on ARM® Cortex®-M7, delivering 462 DMIPS performance, with up to 2MB Flash and 512+16+4KB RAM, supporting USB OTG HS/FS, Ethernet, 18 timers, 3 ADCs, 28 communication interfaces, camera, LCD, and DSI.

Key features

• Core: ARM 32-bit Cortex-M7 CPU with DPFPU, ART Accelerator™ and L1-cache: 16 KB I/D cache, allowing 0-wait state execution from embedded Flash and external memories, up to 216 MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
• Memories – Up to 2 MB of Flash memory organized into two banks allowing read-while-write – SRAM: 512 KB (including 128 KB of data TCM RAM for critical real-time data) + 16 KB of instruction TCM RAM (for critical real-time routines) + 4 KB of backup SRAM Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND memories
• Dual mode Quad-SPI Graphics Chrom-ART Accelerator™ (DMA2D), graphical hardware accelerator enabling enhanced graphical user interface – Hardware JPEG codec – LCD-TFT controller supporting up to XGA resolution MIPI DSI host controller supporting up to 720p 30 Hz resolution
• Clock, reset and supply management – 1.7 V to 3.6 V application supply and I/Os – POR, PDR, PVD and BOR – Dedicated USB power – 4-to-26 MHz crystal oscillator Internal 16 MHz factory-trimmed RC (1% accuracy) 32 kHz oscillator for RTC with calibration – Internal 32 kHz RC with calibration
• Low-power – Sleep, Stop and Standby modes – VBAT supply for RTC, 32x32 bit backup registers + 4KB backup SRAM
• 3x12-bit, 2.4 MSPS ADC: up to 24 channels
• Digital filters for sigma delta modulator (DFSDM)
• 2x12-bit D/A converters
• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
• Up to 18 timers: up to thirteen 16-bit (1x lowpower 16-bit timer available in Stop mode) and two 32-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input. All 15 timers running up to 216 MHz. 2x watchdogs, SysTick timer
• Debug mode – SWD & JTAG interfaces Cortex-M7 Trace Macrocell™
• Up to 168 I/O ports with interrupt capability – Up to 164 fast I/Os up to 108 MHz Up to 166 5V-tolerant I/Os
• Up to 28 communication interfaces Up to 4 I²C interfaces (SMBus/PMBus) Up to 4 USARTs/4 UARTs (27 Mbit/s, ISO7816 interface, LIN, IrDA, modem control) Up to 6 SPIs (up to 50 Mbit/s), 3 with muxed simplex I²S for audio 2 x SAIs (serial audio interface) 3xCANs (2.0B Active) and 2x SDMMCs SPDIFRX interface HDMI-CEC MDIO slave interface
• Advanced connectivity USB 2.0 full-speed device/host/OTG controller with on-chip PHY USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
• 8- to 14-bit camera interface up to 54 Mbyte/s
• True random number generator
• CRC calculation unit
• RTC: subsecond accuracy, hardware calendar
• 96-bit unique ID
