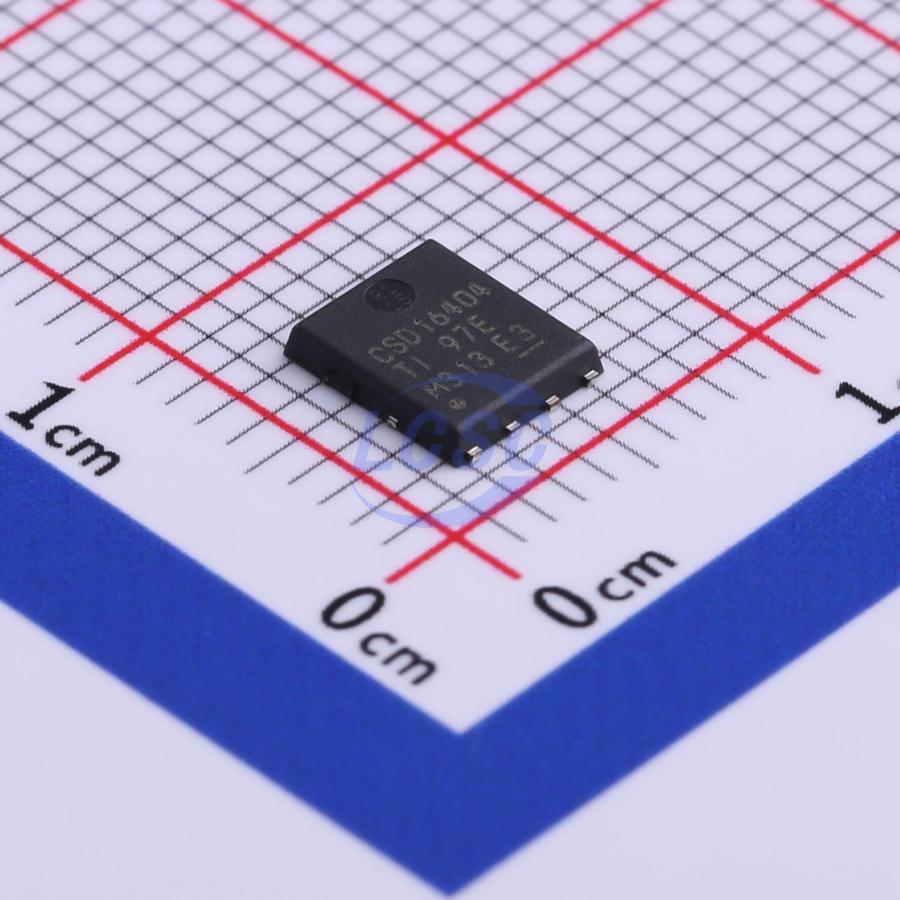

CSD16404Q5A
N-Channel 25V 81A 3W Surface Mount SON-8(5x6)
SON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 25V 81A SON-8(5x6)
- Manufacturer
- TI
- Manufacturer part #
- CSD16404Q5A
- Store part #
- C553153
- Package / case
- SON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,712 in stock
#C553153
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.30 | ₹86.30 |
| 10+ | ₹76.61 | ₹766.10 |
| 30+ | ₹71.67 | ₹2,150.10 |
| 100+ | ₹61.55 | ₹6,155.00 |
| 500+ | ₹58.54 | ₹29,270.00 |
| 1,000+ | ₹57.03 | ₹57,030.00 |
1 × ₹86.30
₹86.30
excl. GST
₹101.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD16404Q5A
₹86.30 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Output Capacitance(Coss)
- 1.05nF
- Current - Continuous Drain(Id)
- 81A
- Ciss-Input Capacitance
- 1.22nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 4.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
Applications
- Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom and Computing Systems
- Optimized for Control FET Applications
Key features
- Ultralow Qg and Qgd
- Low Thermal Resistance
- Avalanche Rated
- Pb Free Terminal Plating
- RoHS Compliant
- Halogen Free
- SON 5-mm×6-mm Plastic Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD16408Q5#C2760460TI · VSON-8(5x6) | TI | VSON-8(5x6) | 10 | ₹229.39 · 10 in stock | View |
 | CSD18509Q5B#C553147TI · VSON-CLIP-8(6x5) | TI | VSON-CLIP-8(6x5) | 48 | ₹231.21 · 48 in stock | View |
 | CSD17506Q5A#C181520TI · TDSON-8(5x6) | TI | TDSON-8(5x6) | 15 | ₹786.50 · 15 in stock | View |
 | CSD17302Q5A#C553151TI · DFN-8(4.9x5.7) | TI | DFN-8(4.9x5.7) | 10 | ₹235.90 · 10 in stock | View |
 | CSD17555Q5A#C543034TI · SON-8(5x6) | TI | SON-8(5x6) | 11 | ₹400.15 · 11 in stock | View |
